CO2 Fire Extinguisher

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

CO2 Fire Extinguisher is a liquefied gas which is highly effective fighting B & C Class of Fires. The offered extinguishers are perfect for areas where contamination and/ or clean-up are a concern, such as data processing centres, labs, food storage, telecommunication rooms and processing areas etc. Our offered fire extinguisher is used in construction sites, airports, electrical substation, meter room and dg room. Easy to hold and use, longer shelf life, anti-corrosive body and optimum quality are qualities of offered fire extinguisher. This CO2 Fire Extinguisher is available in 580 - 705 mm height.

Specification :

Stored Pressure Type

MODEL NO	SE-C02-2	SE-C02- 3	SE-C02- 4.5
Capacity	2	3	4.5
Diameter ( mm)	108	140	140
Height ( mm)	580	545	705
Empty Weight (kg )	6.2	9.9	12.4
Filled Weight (kg)	8.2	12.9	16.9
Operating Temperature	-30 C to +55 C	-30 C to +55 C	-30 C to +55 C
Maximum Service Pressure	16.9 MPa	16.9 MPa	16.9 MPa
Test Pressure	250 bar	250 bar	250 bar
Average Discharge Time	9	9	10
Fire Rating	8B	13B	34B

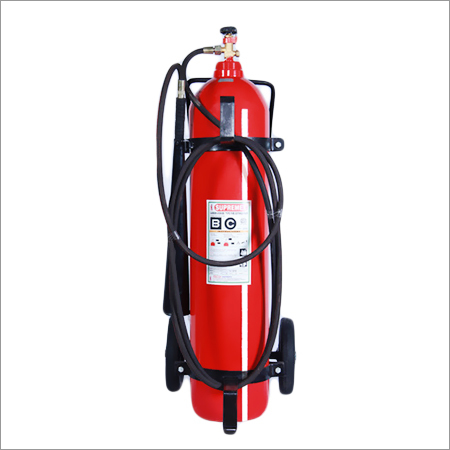

Trolley Mounted Carbon Dioxide

MODEL	SE-T-C02-6.5	SE-T-C02-9	SE-T-C02-22.5
Capacity	6.5	9	22.5
Dia	140	140	232
Thickness	4.2	4.2	5.5
Hydraulic test pressure	250	250	250
Jet range	2.5	2.5	2.5
Min period for which jet is maintained	10	15	20
Max period to discharge	20	36	60
Min discharge quantity	95	95	95
Height	855	1110	1030
Empty weight	14.9	19	42
Filled weight	21.4	28	64.5
Working temperature	-30 C to +55 C	-30 C to +55 C	-30 C to +55 C
